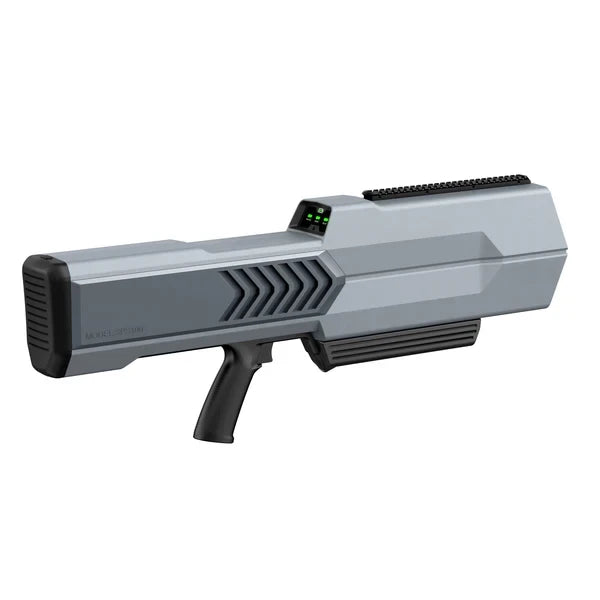

Blader
Protable Jammer
Blader is a portable jammer for SUAVs. Featuring countermeasures for UAV
flight control, map transmission, and GNSS bands, it can repel drones or force them
to crash to solve the threat of rogue SUAVs.
Associate with Spoofer
Blader can flexibly associate with products of Aegishut to form different
solutions according to customer requirement.
It can cause UAVs to lose control and crash by connecting to Spoofer via and Intranet.
It can control the UAV to land at a specified location by connecting to Spoofer and traker.
Multiple Jamming Methods
Upon successful interference, the UAV loses communication with the pilot,
resulting in a repel or crash.
Capable of jamming UAV flight control
and video transmission frequency
bands
Capable of disrupting GNSS frequency
bands
Expandable to and frequency band
Blader
competitor 1
competitor 2
Stable Effect
Hign-power Blader can maintain the same jamming effect on different
models of UAVs.
Release all
frequencies at once
Jamming range can
reach up to 1.5km
Blader
1.5km
Effective Range
Drone 1
Drone 2
FPV
0.8km
Effective Range
0.5km
Effective Range
Ineffective Jamming
Other
Brands
Flexible
& Portable
Compact and
Portable
Weight
below 4kg
High
maneuverability
| Hardware | Dimensions (mm) | 795*100*304 |
| Weight (kg) | 4 | |
| Jamming Time (min) | 30 | |
| Jamming | Range (km) | 1.5 |
| Power | 100W | |
| FoV | Azimuth: ±15° Pitch: ±10° | |
| Frequency | 868MHz / 915MHz / 1.2GHz / 1.4GHz / 1.6GHz / 2.4GHz / 4.95GHz / 5.2GHz / 5.35GHz / 5.6GHz / 5.8GHz The expansion module enables the expansion of arbitrary frequency bands. | |
| Others | Temperature Range | Operating temperature (℃): -20 ~ +55 Storage temperature (℃): -20 ~ +60 |
| User Logs | supported | |
| IP Rating | IP65 |
